CYLINDER TUBE

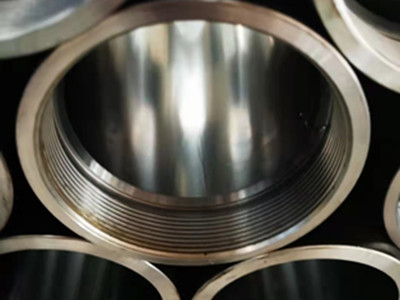

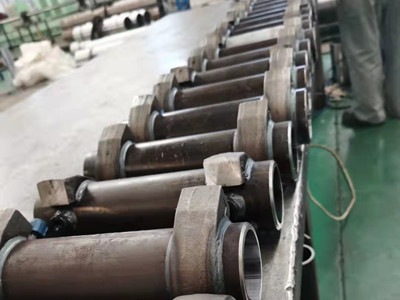

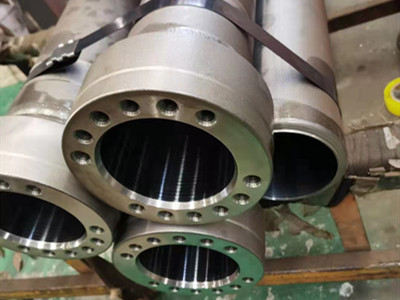

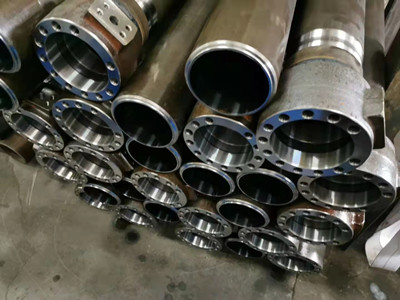

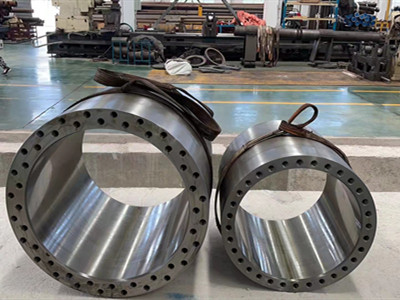

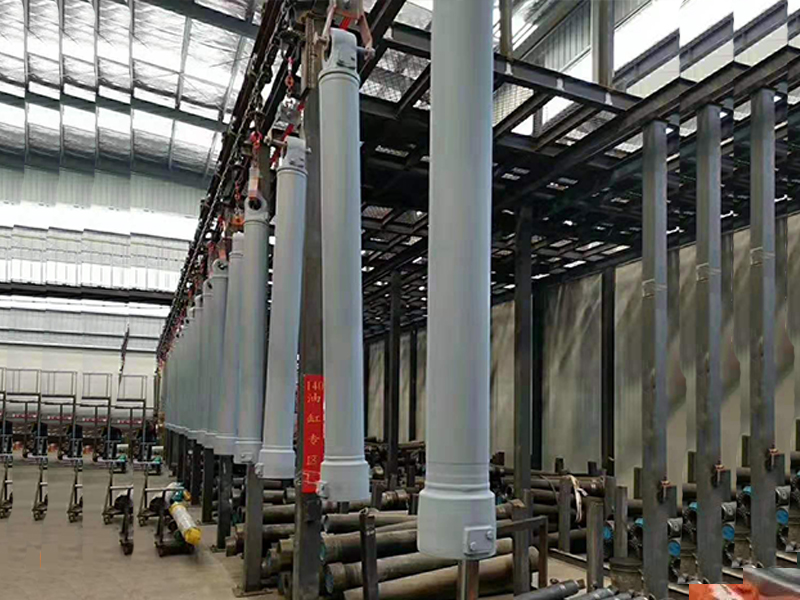

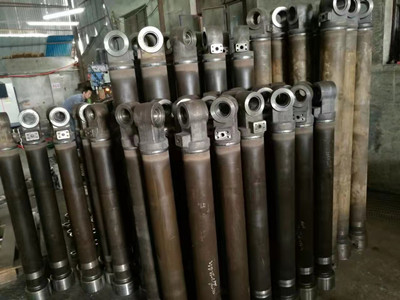

The hydraulic tube is the outer casing of the hydraulic cylinder, which is obtained after the honed tube is machined. We can produce the cylinder tube according to the drawing, and provide the welding process. The customer can directly assemble the hydraulic cylinder after receiving the hydraulic cylinder tube.
Name:Hydraulic Cylinder Honed Tube Brand Name: GL PARTS
Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn Place of Origin: China
Straightness: ≤ 0.5/1000 Roughness: 0.2-0.4 u
Tolerance EXT: DIN2391, EN10305, GB/T 1619 Tolerance INT: H7,H8,H9
ID Size : 20mm – 1500mm Length: max 16m
Material: ST52,CK45,4140,SCM440,16Mn,42CrMo,E355,Stainless Steel 304/316,Duplex 2205,etc.
Protection: Anti-rust oil on inside and outside surface, plastic caps in both ends.
Packing: Bundle with steel strip and PE sheet or wooden case
Delivery Condition: BK, BK+S, GBK, NBK
