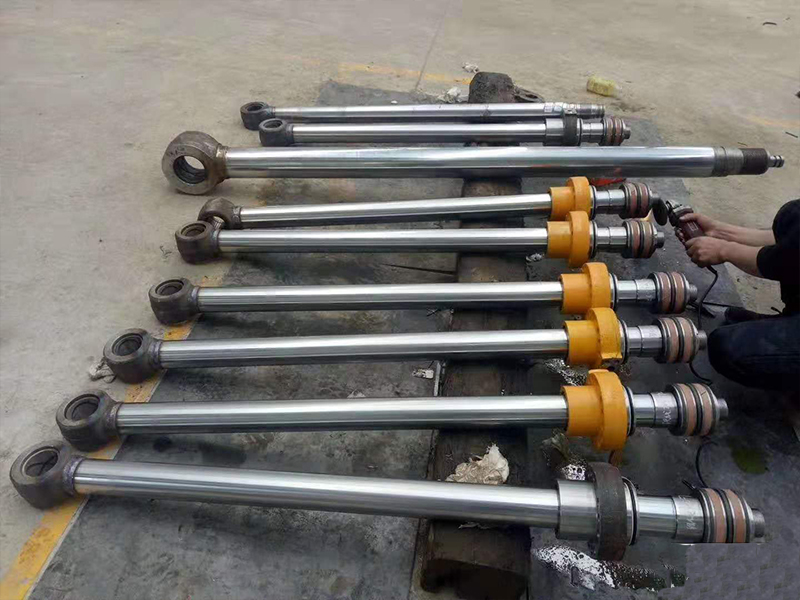

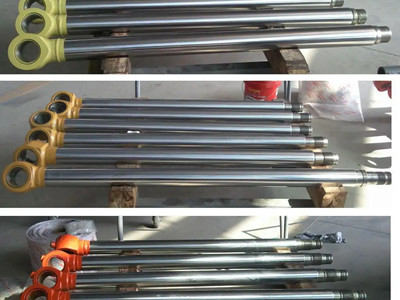

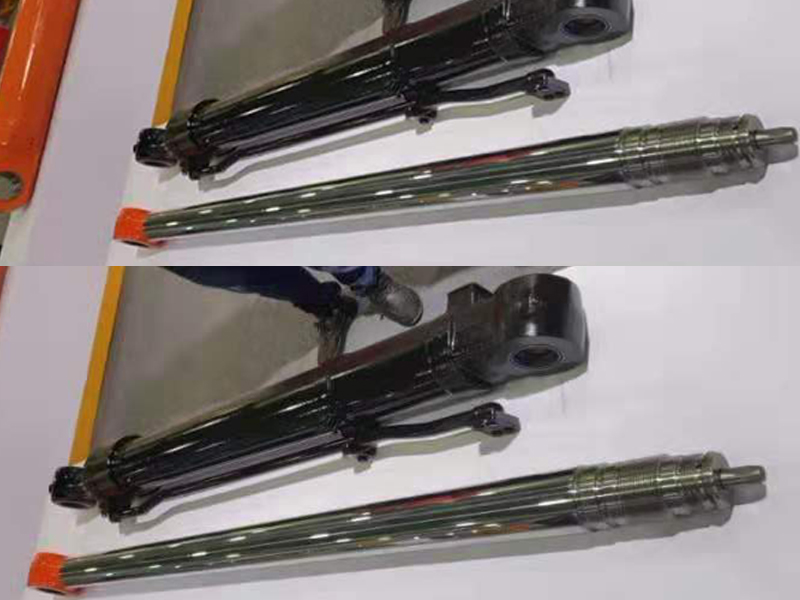

Piston Rod
The piston rod is the connecting part that supports the work of the piston. Most of them are used in the hydraulic cylinder and the cylinder motion execution part. It is a moving part with frequent movements and high technical requirements. Taking the hydraulic cylinder as an example, it is composed of: cylinder barrel, piston rod (cylinder rod), piston, and gland. The quality of its processing directly affects the life and reliability of the entire product. The piston rod has high processing requirements, and its surface roughness is required to be Ra0.4 ~ 0.8μm.
Name: Piston Rod Brand Name: GL PARTS
Place of Origin: China Type: Piston Rod/ Cylinder Rod
Diameter: Φ6-800mm Length: max 13m
Chrome layer: 20 micron (min) Roughness: Ra <= 0.2u
Straightness: <= 0.2/1000 Diameter tolerance: ISO f7/h8/g6

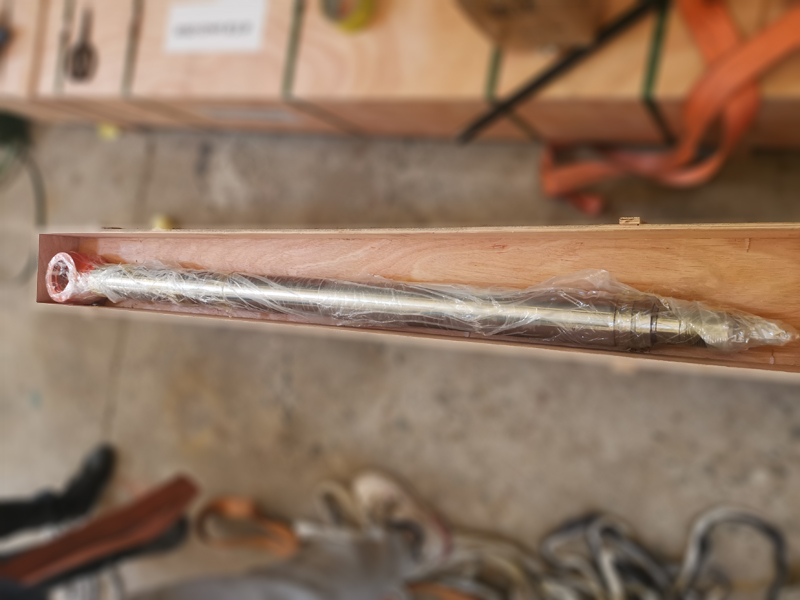

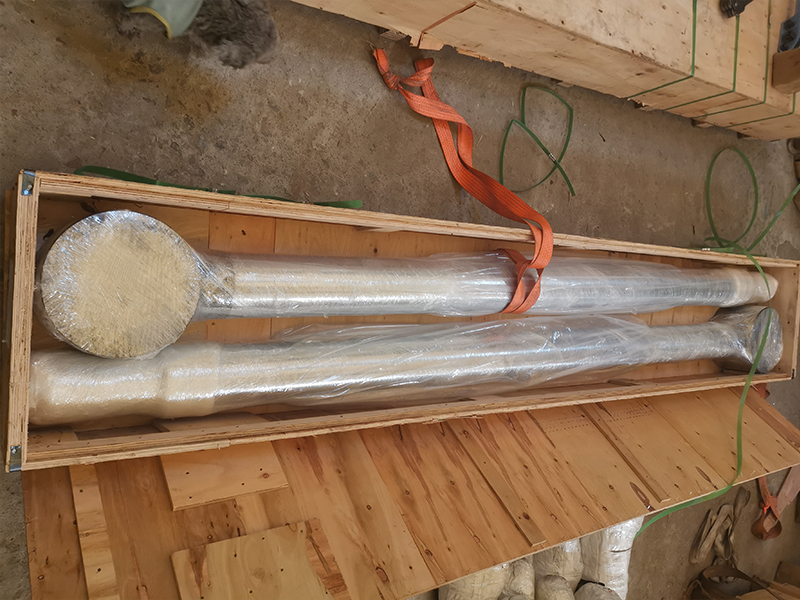

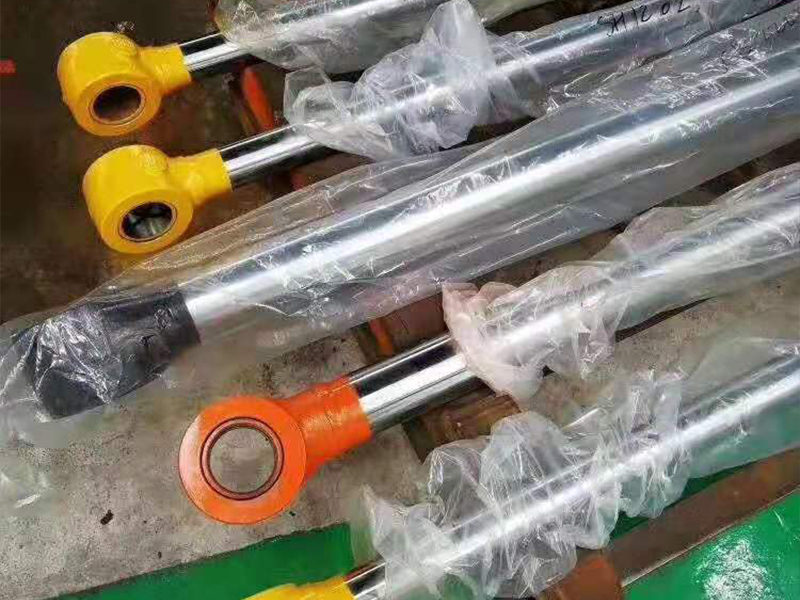

Packing: Wooden case Protection: Anti-rust oil outside with hard board sleeve protection.
Material: CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Stainless Steel 304/316/2205, etc.
